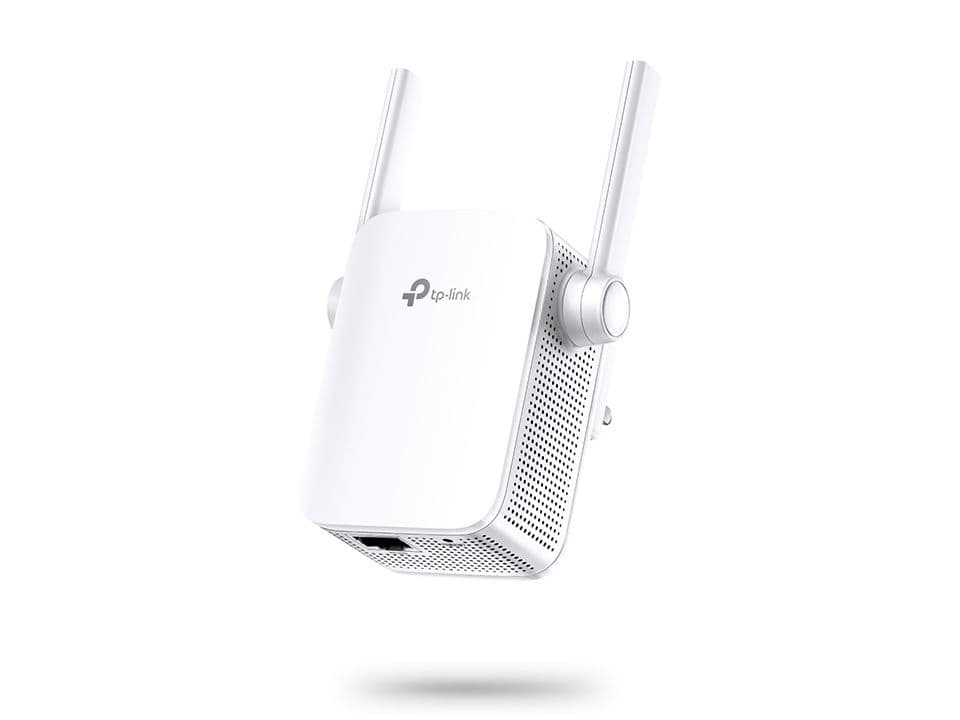

RE205 - AC750 Wi-Fi Range Extender

Standards and Protocols

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Working Modes

Range Extender/Access Point

Package Content

- AC750 Wi-Fi Range Extender RE205- Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Interface

1 x 10/100Mbps Ethernet Port (RJ45)

Button

WPS Button, RESET Button

Dimensions ( W x D x H )

3.06 x 1.57 x 3.15 in. (77.8 x 40 x 80 mm)

Antenna

2 External Antennas

Certification

CE, RoHS

Wireless Standards

IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4 GHz and 5 GHz(11ac)

Signal Rate

5GHz:Up to 433Mbps2.4GHz:Up to 300Mpbs

Reception Sensitivity

5GHz：11a 6Mbps: -94dBm@10% PER11a 54Mbps: -77dBm@10% PER11ac HT20: -69dBm@10% PER 11ac HT40: -66dBm@10% PER11ac HT80: -63dBm@10% PER2.4GHz11g 54Mbps: -79dBm@10% PER11n HT20: -77dBm@10% PER11n HT40: -74dBm@10% PER

Wireless Functions

Wireless StatisticConcurrent Mode boost both 2.4G/5G Wi-Fi bandAccess ControlLED ControlDomain Login Function

Wireless Security

WEP, WPA/WPA2-PSK encryptions, Enable/Disable SSID Broadcast

Input Power

100-240V~50/60Hz

Transmission Power

≤20dBm (2.4 GHz)≤20dBm (5 GHz)

Max. Power Consumption

7.2W

Wireless Modes

Range Extender/Access PointWireless StatisticConcurrent Mode boost both 2.4G/5G Wi-Fi band

Plug Type

EU

Box Dimensions (W X D X H)

6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm)
