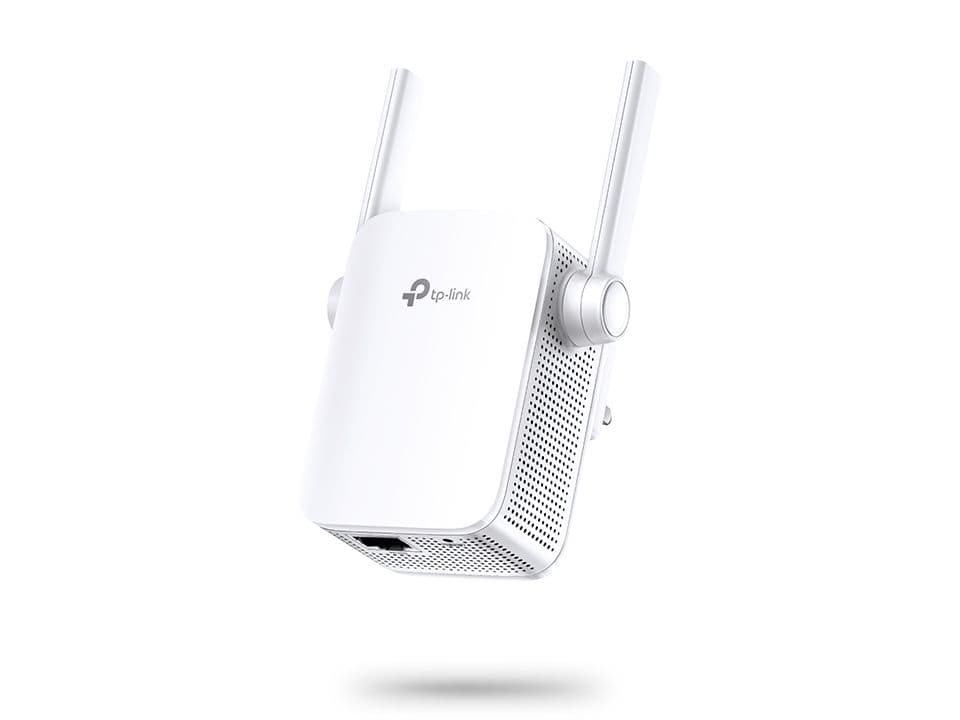

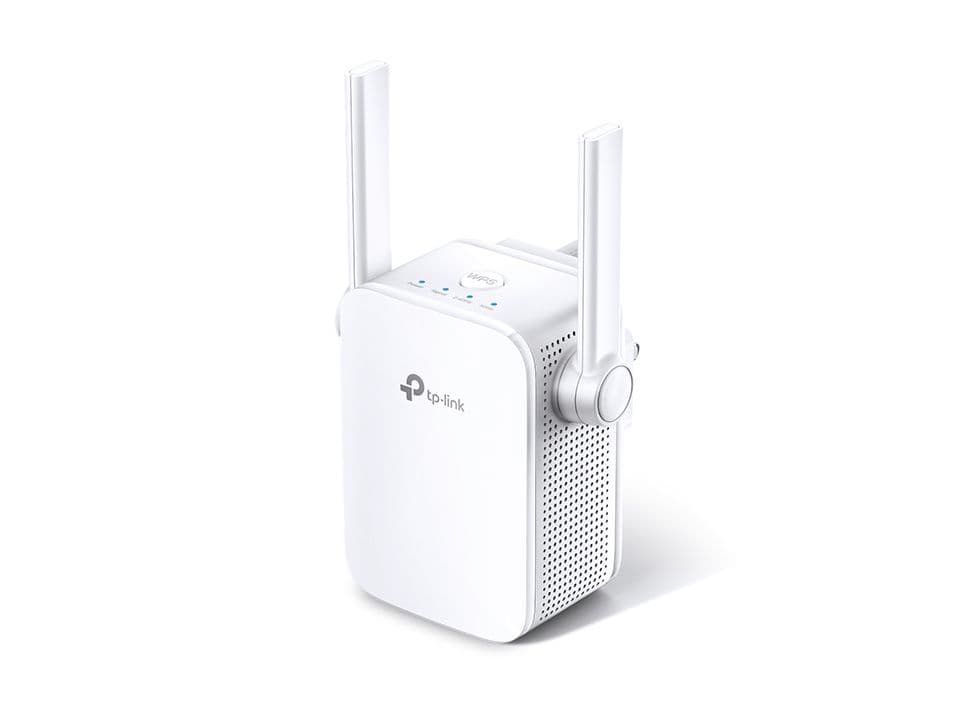

RE305 - AC1200 Wi-Fi Range Extender

Standards and Protocols

IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b

Working Modes

Range Extender/Access Point

Package Content

AC1200 Wi-Fi Range Extender RE305Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Interface

1 x 10/100Mbps Ethernet Port (RJ45)

Button

WPS Button, Reset Button

Dimensions ( W x D x H )

3.1*3.0*3.0 in. (80*78*77mm)

Antenna

2* external

Certification

CE, FCC, RoHS

Wireless Standards

IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4GHz & 5GHz(11ac)

Signal Rate

5GHz:Up to 867Mbps2.4GHz:Up to 300Mpbs

Reception Sensitivity

5GHz：11a 6Mbps:-91dBm@10% PER11a 54Mbps: -74dBm@10% PER11ac HT20 mcs8: -68dBm@10% PER11ac HT40 mcs9: -63dBm@10% PER11ac HT80 mcs9: -59dBm@10% PER2.4GHz11g 54M: -79dBm@10% PER11n HT20 mcs7: -77dBm@10% PER11n HT40 mcs7: -74dBm@10% PER

Wireless Functions

Wireless StatisticConcurrent Mode boost both 2.4G/5G Wi-Fi bandAccess ControlLED ControlDomain Login Function

Wireless Security

64/128-bit WEPWPA-PSK / WPA2-PSK

Input Power

100-240V~50/60Hz

Transmission Power

<17dBm(2.4GHz)<17dBm(5GHz)

Max. Power Consumption

7.3W（max power consumption）

Wireless Modes

Range Extender/Access PointWireless StatisticConcurrent Mode boost both 2.4G/5G Wi-Fi band

Plug Type

EU, UK, US

Box Dimensions (W X D X H)

6.15*4*3.7in. (156.5*101.5*95mm)
