TP-Link

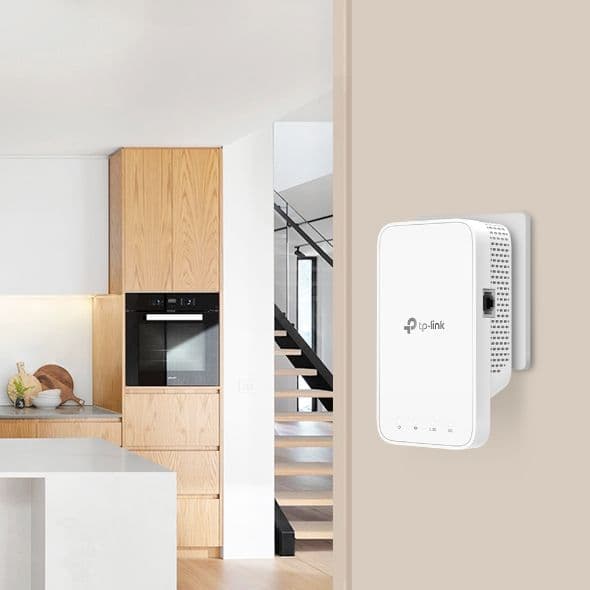

RE330 - AC1200 Mesh Wi-Fi Extender

0,00 ₼

Eliminate weak signal areas with whole home WiFi coverage.
2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) dual-band WiFi connection ensures more stable wireless experience.†
Creates a Mesh network by connecting to an EasyMesh-compatible router for whole-home coverage.
Adaptive Path Selection – connects to the fastest connection path to the router automatically and runs at top-speed.
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability.
Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.
Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI.
Works with any Wi-Fi router or wireless access point.*

Low stock

Working Modes

Range Extender/Access Point

Package Content

Wi-Fi Range Extender RE330Quick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Interface

1 x 10/100Mbps Ethernet Port (RJ45)

Button

WPS Button, Reset Button

Dimensions ( W x D x H )

2.7×1.4×4.9 in. (69.5×35.0×124.1 mm)

Antenna

2 Internal Antennas

Certification

FCC, RoHS

Wireless Standards

IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4GHz and 5GHz

Signal Rate

300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Reception Sensitivity

5 GHz:11a 6Mbps: -94dBm11a 54Mbps: -77dBm11ac HT20 MCS0: -94dBm11ac HT20 MCS8: -71dBm11ac HT40 MCS0: -92dBm11ac HT40 MCS9: -66dBm11ac HT80 MCS0: -87dBm11ac HT80 MCS9: -62dBm2.4 GHz:11g 54Mbps: -78dBm11n HT20 MCS7: -76dBm11n HT40 MCS7: -74dBm

Wireless Functions

Enable/Disable Wireless RadioDFS (the latest firmware and hardware version is required)Access ControlLED ControlPower ScheduleWi-Fi Coverage

Wireless Security

64/128-bit WEP, WPA-PSK/WPA2-PSK encryptions

Input Power

100-240V~50/60Hz

Transmission Power

2.4 GHz ≤20dBm, 5 GHz ≤30dBm

Max. Power Consumption

9.5W
