TP-Link

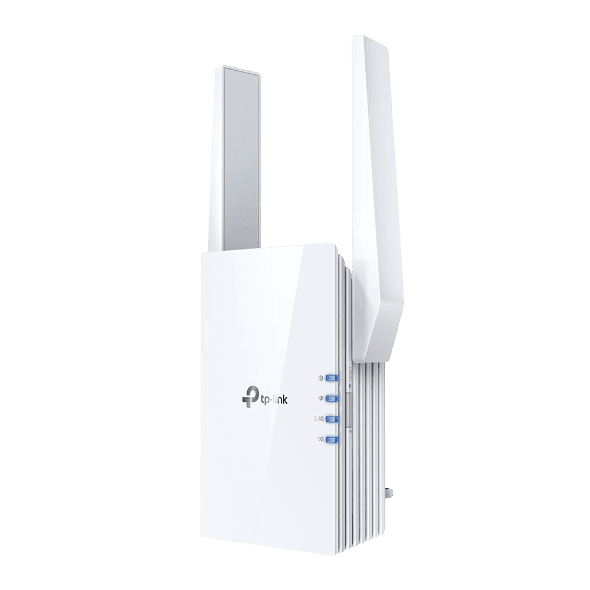

RE505X - AX1500 Wi-Fi Range Extender

0,00 ₼

RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Creates a Mesh network by connecting to a TP-Link OneMesh™ router for seamless whole-home coverage.

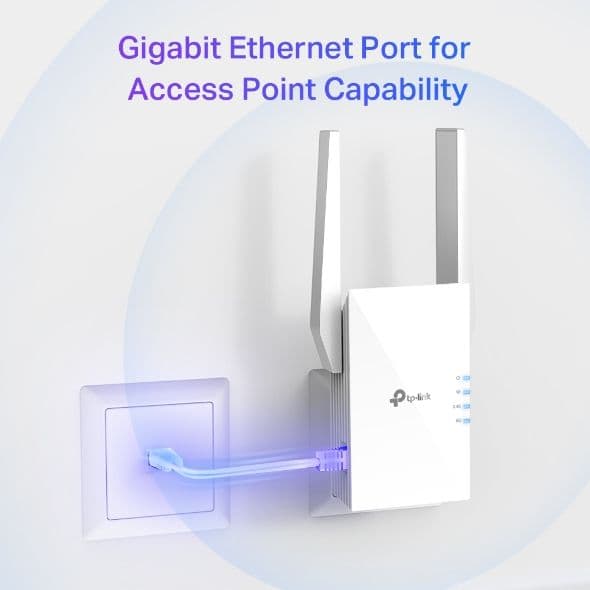

Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
TP-Link TP-Link OneMesh™ – Simplest way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage.
AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

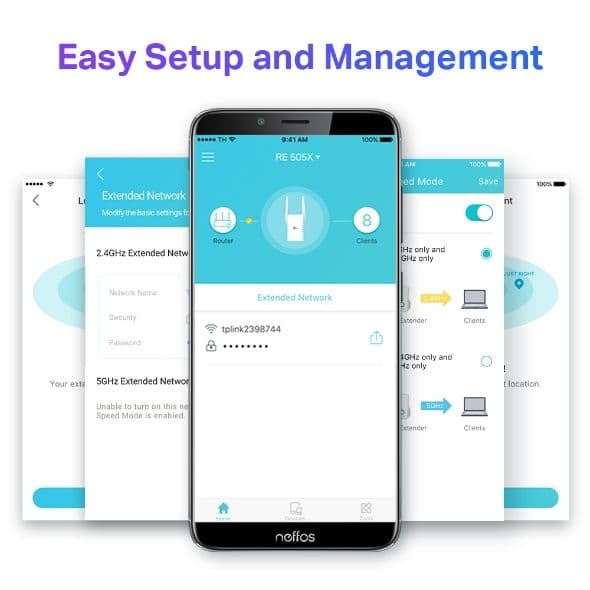

TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

Low stock

Working Modes

Range Extender/Access Point

Package Content

Wi-Fi Range Extender RE505X Quick Installation Guide

Certifications

FCC, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Interface

1 Gigabit Ethernet Port

Button

WPS Button, Reset Button

Dimensions ( W x D x H )

2.9×1.8×4.9 in. (74.0×46×124.8 mm)

Antenna

2 External Antennas

Certification

FCC, RoHS

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4GHz and 5GHz

Signal Rate

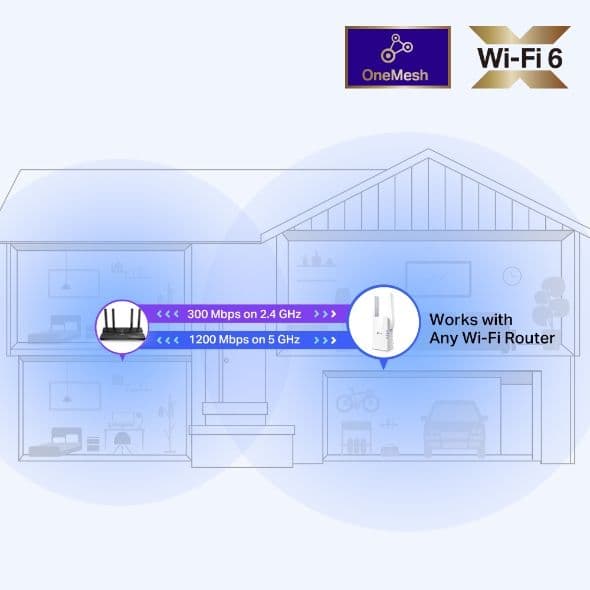

300 Mbps at 2.4GHz, 1200 Mbps at 5GHz

Reception Sensitivity

5GHz: 11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm 11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm 11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm 2.4GHz: 11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2-PSK encryptions

Input Power

100-240V~50/60Hz

Transmission Power

CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm

Max. Power Consumption

10W
