RE705X - AX3000 Mesh WiFi 6 Extender

Working Modes

Range Extender / Access Point

Package Content

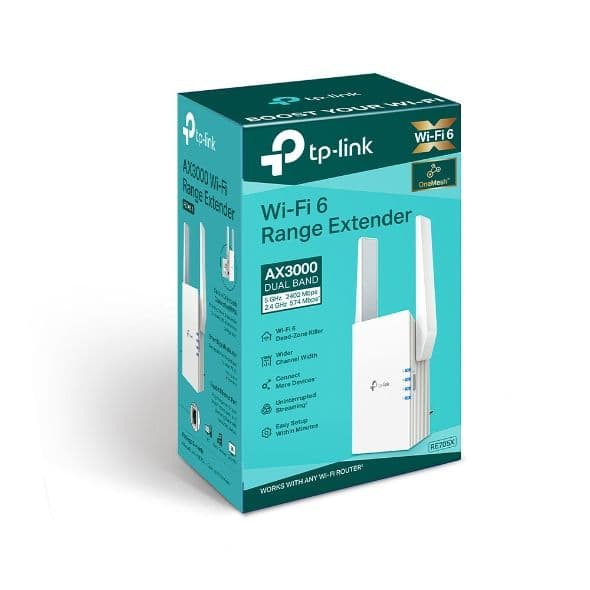

Wi-Fi Range Extender RE705X Quick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Interface

1 Gigabit Ethernet Port

Button

WPS Button, Reset Button

Dimensions ( W x D x H )

97*46*158

Antenna

2 External Antennas

Certification

CE, RoHS

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz

Frequency

2.4GHz and 5GHz

Signal Rate

574 Mbps at 2.4GHz, 2402 Mbps at 5GHz

Reception Sensitivity

5GHz: 11a 6Mbps:-97dBm11a 54Mbps:-78dBm11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -62dBm11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -61dBm 11ax HE160 MCS11: -59dBm 2.4GHz: 11g 6Mbps:-96dBm11g 54Mbps:-78dBm11ax HE20 MCS0: -95dBm 11ax HE20 MCS11: -66dBm11ax HE40 MCS0: -93dBm 11ax HE40 MCS11: -62dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security

WEP, WPA, WPA2, WPA3

Input Power

100-240V~50/60Hz

Transmission Power

CE: 2.4GHz ≤16dBm, 5GHz ≤21dBm

Max. Power Consumption

12.6W

Mesh Technology

EasyMesh-Compatible

Wireless Modes

Range Extender / Access Point
