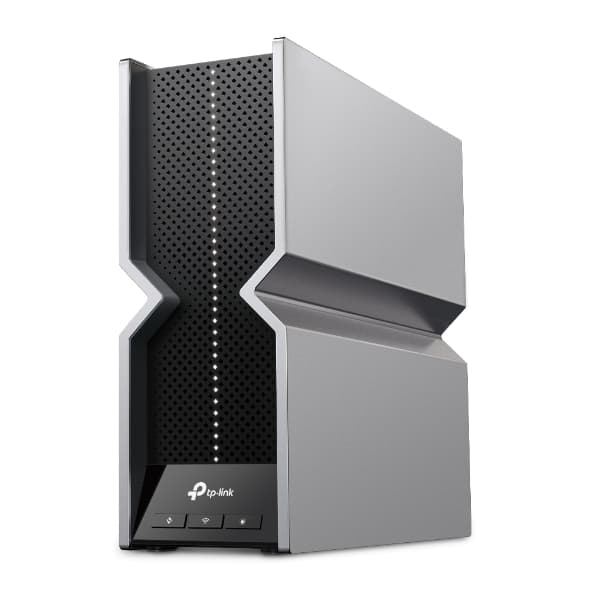

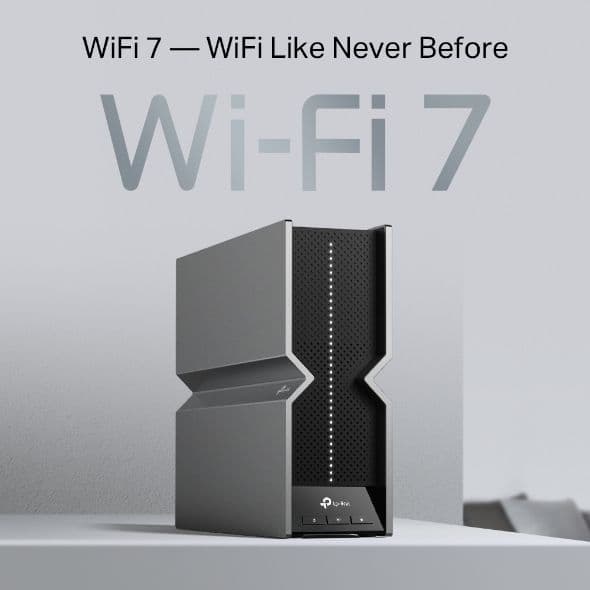

RE800BE - BE19000 Tri-Band Wi-Fi 7 Range Extender

Working Modes

Range Extender/Access Point

Advanced Features

• Multi-Link Operation (MLO)• 320 MHz Channel• 4K-QAM• Multi-RUs

Package Content

• Wi-Fi 7 Range Extender RE800BE• Power Adapter• RJ45 Ethernet Cable• Quick Installation Guide

Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ orWindows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari4.0, or other Java-enabled browser

Interface

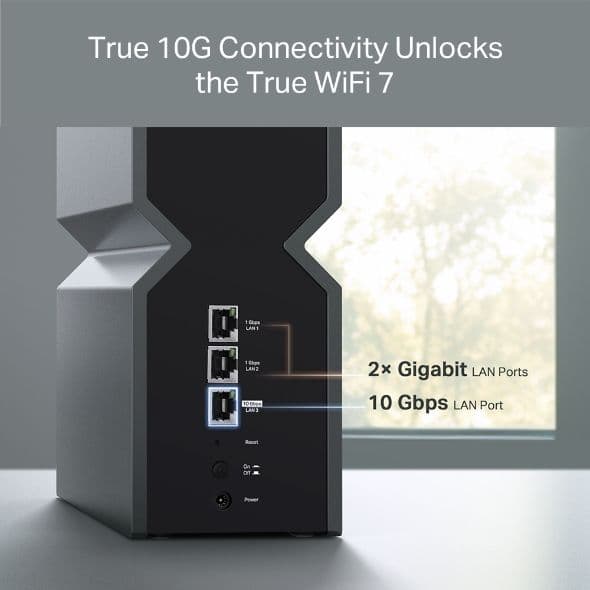

1× 10 Gbps LAN Port + 2× Gigabit LAN Ports

Button

• WPS Button• Reset Button

Dimensions ( W x D x H )

11.9 ×10.3 ×3.8 in. (302 × 262.5 × 96 mm)

Antenna

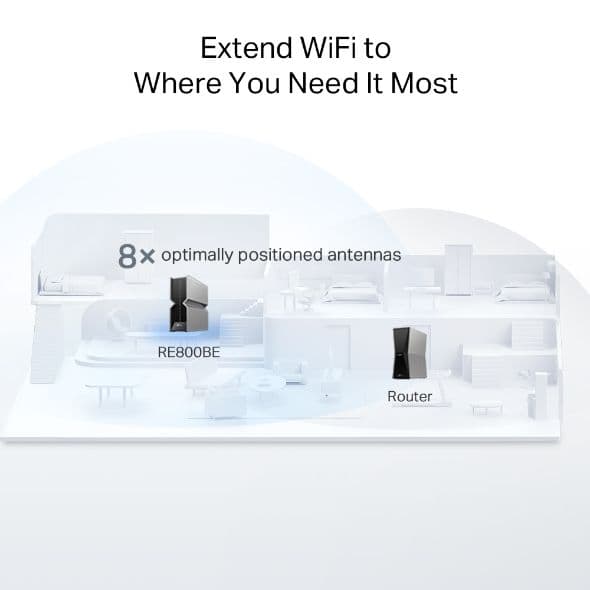

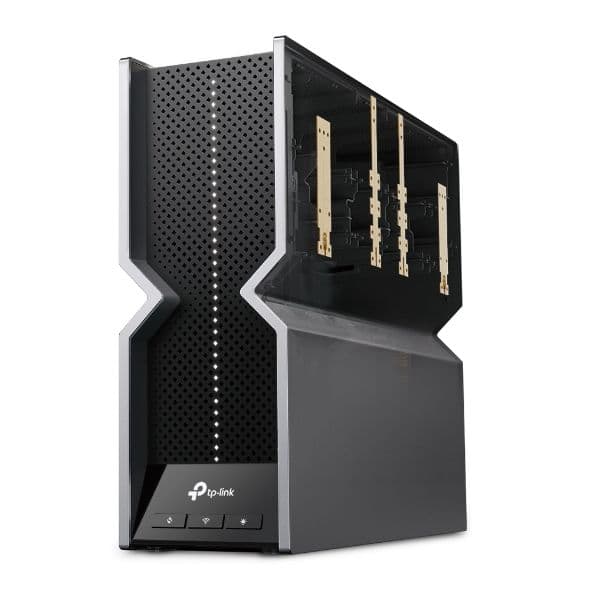

8 Internal Antennas

Certification

CE, RoHS

Wireless Standards

Wi-Fi 7IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/b/g 2.4 GHz

Frequency

• 2.4 GHz• 5 GHz• 6 GHz

Signal Rate

• 1376 Mbps at 2.4 GHz• 5760 Mbps at 5 GHz• 11520 Mbps at 6 GHz

Reception Sensitivity

6GHz:11ax HE20 MCS0：-92dBm, 11ax HE20 MCS11：-61dBm11ax HE40 MCS0：-89dBm, 11ax HE40 MCS11：-58dBm11ax HE80 MCS0：-86dBm, 11ax HE80 MCS11：-55dBm11ax HE160 MCS0：-83dBm, 11ax HE160 MCS11：-52dBm5GHz:11ax HE20 MCS0：-93dBm, 11ax HE20 MCS11：-62dBm11ax HE40 MCS0：-90dBm, 11ax HE40 MCS11：-59dBm11ax HE80 MCS0：-87dBm, 11ax HE80 MCS11：-56dBm11ax HE160 MCS0：-84dBm, 11ax HE160 MCS11：-53dBm2.4GHz:11ax HE20 MCS0：-95dBm, 11ax HE20 MCS11：-64dBm11ax HE40 MCS0：-92dBm, 11ax HE40 MCS11：-62dBm

Wireless Security

• 64/128-bit WEP• WPA/WPA2-PSK encryptions• WPA3

Input Power

100-240V~50/60Hz

Transmission Power

CE: ≤17dBm (2.4 GHz)≤27dBm (5 GHz)≤20dBm (6 GHz)

Max. Power Consumption

23W

Mesh Technology

EasyMesh-Compatible

Wireless Function

• LED Control• Access Control• Power Schedule• Wi-Fi Coverage
