TP-Link

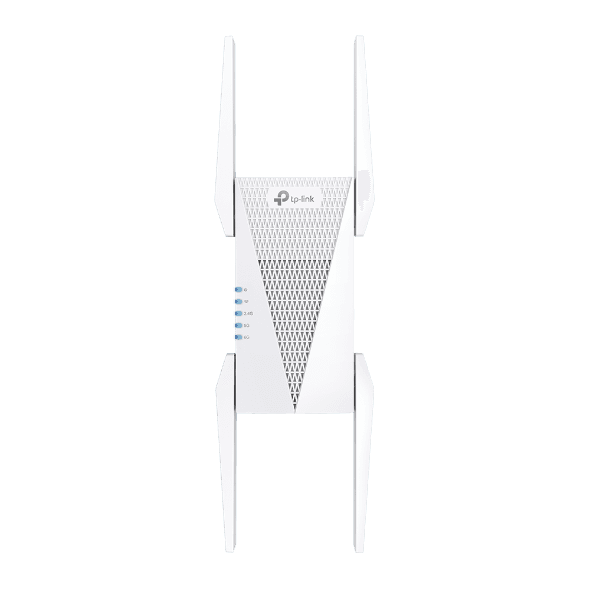

RE815XE - AXE5400 Mesh Wi-Fi 6E Range Extender

0,00 ₼

AXE5400 Tri-Band Wi-Fi: Boosts overall speeds up to an incredible 5400 Mbps.†
6 GHz Band: Provides a clearer band to prevent Wi-Fi interference and congestion.
160 MHz Channel Bandwidth: Expands bandwidth to double the network speed of traditional 80 MHz.‡
Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§
Improved Capacity, Less Lag: Experience flawless streams on more screens throughout your home.
Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.

Low stock

Working Modes

Range Extender/Access Point

Network Services Enabled by Default

Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCPDHCP ServerIP address assignment (DHCP)• Port: 67 Protocol: UDPApp managementManage and configure device through app• Port: 20001 Protocol: TCP• Port: 20002 Protocol: UDP

Package Content

• Wi-Fi Range Extender RE815XE• Quick Installation Guide

Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ orWindows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari4.0, or other Java-enabled browser

Interface

1 Gigabit Ethernet Port

Button

• WPS Button• Reset Button

Dimensions ( W x D x H )

4.2×1.6×13.7 in. (106.6×39.7×348.2 mm)

Antenna

4 External Antennas

Certification

FCC, RoHS

Wireless Standards

• IEEE 802.11ax 6 GHz• IEEE 802.11a/n/ac/ax 5 GHz• IEEE 802.11b/g/n/ax 2.4 GHz

Frequency

• 2.4 GHz• 5 GHz• 6 GHz

Signal Rate

• 574 Mbps at 2.4 GHz• 2402 Mbps at 5 GHz• 2402 Mbps at 6 GHz

Reception Sensitivity

6GHz:11ax HE20 MCS0：-92dBm, 11ax HE20 MCS11：-61dBm11ax HE40 MCS0：-89dBm, 11ax HE40 MCS11：-58dBm11ax HE80 MCS0：-86dBm, 11ax HE80 MCS11：-55dBm11ax HE160 MCS0：-83dBm, 11ax HE160 MCS11：-52dBm5GHz:11ax HE20 MCS0：-93dBm, 11ax HE20 MCS11：-62dBm11ax HE40 MCS0：-90dBm, 11ax HE40 MCS11：-59dBm11ax HE80 MCS0：-87dBm, 11ax HE80 MCS11：-56dBm11ax HE160 MCS0：-84dBm, 11ax HE160 MCS11：-53dBm2.4GHz:11ax HE20 MCS0：-95dBm, 11ax HE20 MCS11：-64dBm11ax HE40 MCS0：-92dBm, 11ax HE40 MCS11：-62dBm

Wireless Functions

• LED Control• Access Control• Power Schedule• Wi-Fi Coverage

Wireless Security

• 64/128-bit WEP• WPA/WPA2-PSK encryptions• WPA3

Input Power

100-240V~50/60Hz

Transmission Power

FCC: • 2.4GHz < 30dBm• 5GHz < 30dBm• 6GHz < 30dBm

Max. Power Consumption

23W

Mesh Technology

TP-Link OneMesh
