TP-Link

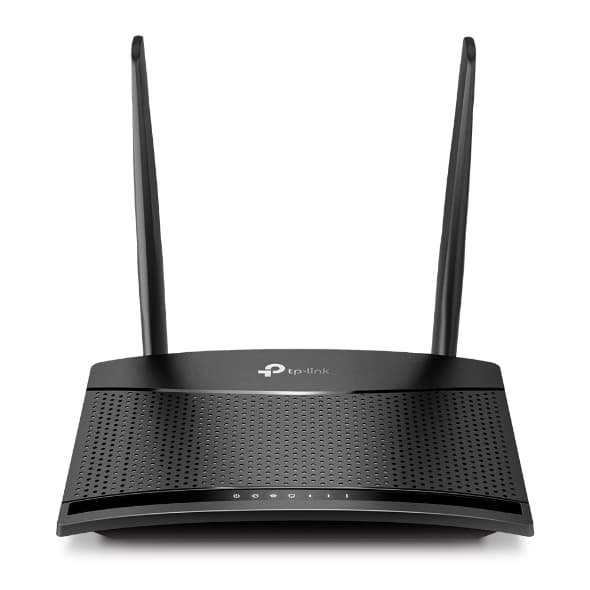

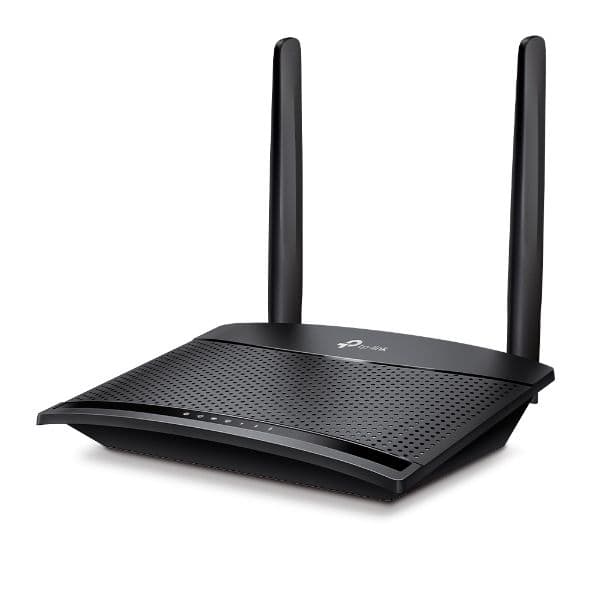

TL MR100 - 300 Mbps Wireless N 4G LTE Router

0,00 ₼

Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

Low stock

Guest Network

2.4 GHz Guest Network

Protocols

IPv4, IPv6

DHCP

Server, DHCP Client List, Address Reservation

Management Features

Local Management, Remote Management

Package Content

300 Mbps Wireless N 4G LTE TL-MR100Power AdapterRJ45 Ethernet CableQuick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Interface

1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,1 Nano SIM Card Slot

Button

WPS/Reset Button

Dimensions ( W x D x H )

6.06×4.49×1.42 in ( 154×114×36 mm)

Antenna

2 Detachable External 4G LTE Antennas

Operating Modes

3G/4G Router, Wireless Router

Port Forwarding

ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, NO-IP

Certification

CE, RoHS

Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browserNano SIM Card

Network Type

4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Wireless Standards

IEEE 802.11b/g/n

Frequency

2.4 GHz

Signal Rate

300 Mbps

Reception Sensitivity

11g 54M: -74 dBm11n HT20: -71 dBm11n HT40: -68 dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, WirelessStatistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Security

IPv4 SPI Firewall, IP and MAC Address Binding

WAN Failover

Yes

Transmission Power

< 20 dBm (2.4 GHz)

Administration

Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

External Power Supply(EU)

9V/0.85A
