TP-Link

TL-MR105 - 300 Mbps Wireless N 4G LTE Router

0,00 ₼

Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

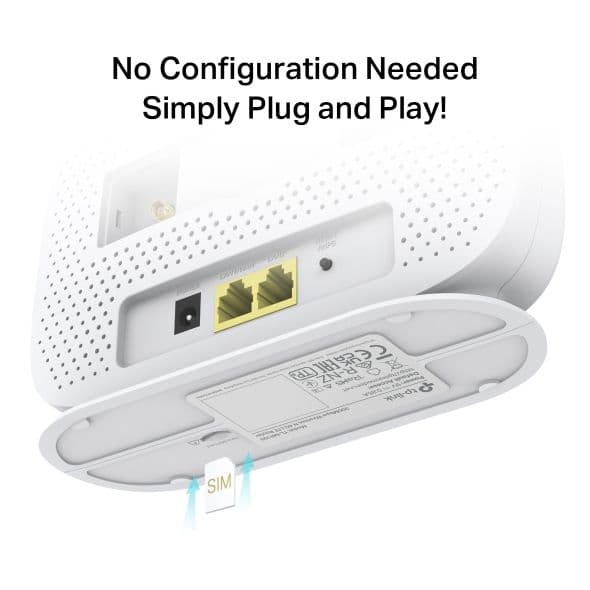

Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

Low stock

Guest Network

2.4 GHz Guest Network

Protocols

IPv4, IPv6

DHCP

Server, DHCP Client List, Address Reservation

Management Features

Local Management, Remote Management

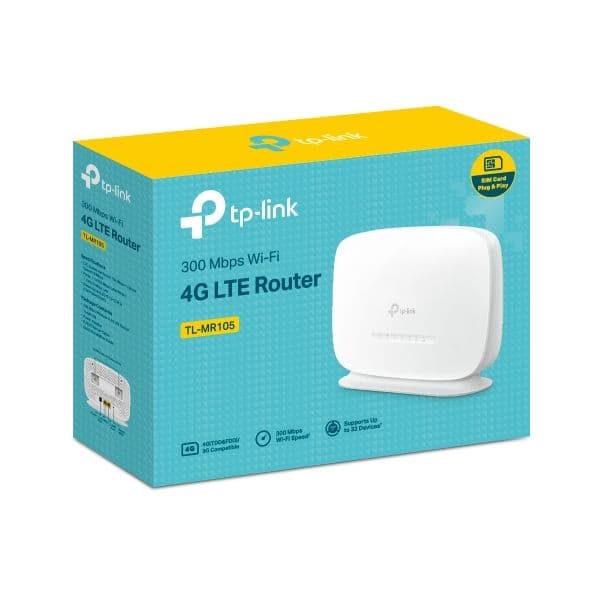

Package Content

300 Mbps Wireless N 4G LTE TL-MR1051.5m Power AdapterRJ45 Ethernet CableQuick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

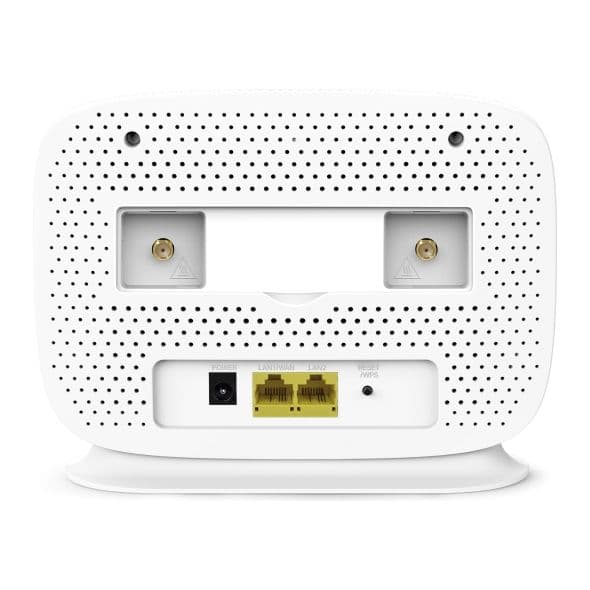

Interface

1 10/100Mbps LAN Port1 10/100Mbps LAN/WAN Port1 Nano SIM Card Slot2 External SMA-F Antenna Interface

Button

Reset/WPS Button

Dimensions ( W x D x H )

6.85×5.12×2.36 in (174×130×60 mm)

Antenna

2× Internal 4G/3G Antennas2× Internal Wi-Fi Antennas

Operating Modes

3G/4G Router, Wireless Router

Port Forwarding

ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

TP-Link, DynDns, NO-IP

Certification

CE, RoHS

Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserNano SIM Card

Network Type

4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Wireless Standards

IEEE 802.11b/g/n

Frequency

2.4 GHz

Signal Rate

300 Mbps

Reception Sensitivity

11g 54M: -74dBm11n HT20: -73dBm11n HT40: -70dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Security

IPv4 SPI Firewall, IP and MAC Address Binding

WAN Failover

Yes

Transmission Power

< 20 dBm (2.4 GHz)

Administration

Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

External Power Supply(EU)

9V/0.85A
