TP-Link

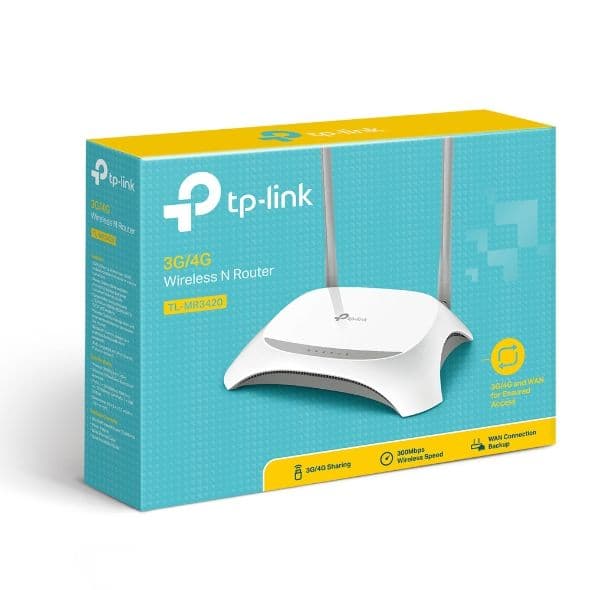

TL MR3420 - 3G/4G Wireless N Router

0,00 ₼

Compatible with LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO USB modems, tested in the field
3G/4G and WAN connection Backup guarantees an "Always-online" Internet connection
Local wireless HD video sharing, with speeds up to 300 Mbps
Easy one-touch wireless security encryption with the WPS button
Bandwidth control allows administrators to determine how much bandwidth is allotted to each PC

Low stock

Management Features

Web Based Configuration(HTTP), Web Based Firmware Upgrade

Package Content

3G/4G Wireless N Router TL-MR34202 AntennasPower supply unitEthernet CableResource CDQuick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ Windows 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux.

Interface

1 USB 2.0 Port for LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO USB Modem1 10/100Mbps WAN Port, 4 10/100Mbps LAN Ports, support the auto-Negotiation and auto-MDI/MDIX

Button

WPS/Reset ButtonWireless On/Off SwitchPower On/Off Button

Dimensions ( W x D x H )

8*5.4*1.7 in. (204*138*44 mm)

Antenna

V1&V2 Omni directional, Detachable, Reverse SMAV3&V4 Omni directional, Undetachable, Reverse SMA

Certification

CE, FCC, RoHS

Wireless Standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Frequency

2.4-2.4835GHz

Wireless Security

Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,Wireless MAC Filtering

Security

NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death

External Power Supply

12VDC/1A

Transmission Power

<20dBm

Antenna Gain

2x5dBi
