TP-Link

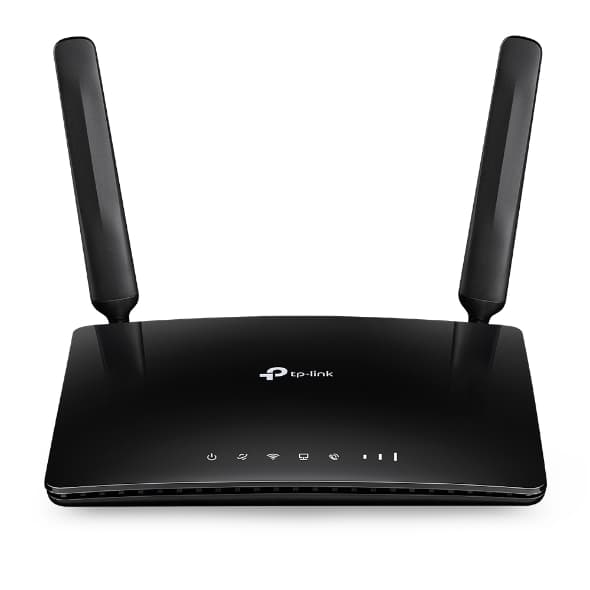

TL MR6500V - N300 4G LTE Telephony WiFi Router

0,00 ₼

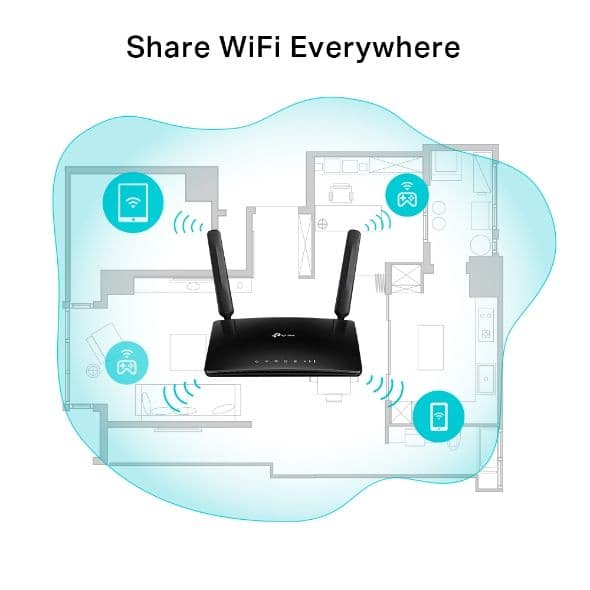

Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps*

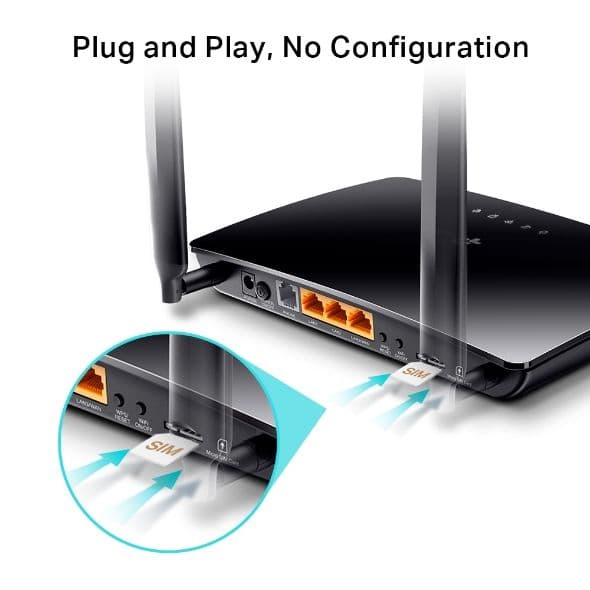

Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
WiFi speeds up to 300 Mbps – enjoy uninterrupted HD movies, rapid file downloads, seamless video chats, and more at the same time*
Professional voice functions – supports VoLTE/CSFB/VoIP functions and provides 50 MB of internal storage for 100 minutes of voicemail
Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

Low stock

Guest Network

2.4 GHz Guest Network

VPN Server

PPTP VPN, OpenVPN

Protocols

Supports IPv4 and IPv6

Quality of Service

WMM, QoS

DHCP

Server, Client, DHCP Client List, Address Reservation

Management Features

Access Control, Local Management, Remote Management

Package Content

300 Mbps Wireless N 4G LTE Telephony Router, TL-MR6500vRJ45 Ethernet CablePower AdapterQuick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsersMicro SIM Card

Interface

1× 10/100 Mbps LAN/WAN Port, 2× 10/100 Mbps LAN Ports, 1× Phone Port, 1 Micro SIMCard Slot

Button

WPS/RESET Button, Wi-Fi ON/OFF Button

Dimensions ( W x D x H )

7.95 × 5.55 × 1.32 in (202 × 141 × 33.6 mm)

Antenna

2× Detachable External 4G LTE Antennas

Operating Modes

3G/4G Router, Wireless Router

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

TP-Link DDNS, DynDns, NO-IP

Firewall Security

DoS, SPI Firewall, IP and MAC Address Binding

Certification

CE, RoHS

Network Type

4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)

Wireless Standards

IEEE 802.11b, 802.11g, 802.11n

Frequency

2.4 GHz

Signal Rate

300Mbps at 2.4GHz

Reception Sensitivity

11g 54M: -74 dBm11n HT20: -71 dBm11n HT40: -67 dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, WirelessStatistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

VPN Pass-Through

PPTP, L2TP, IPSec

Access Control

Parental Controls, Local Management Control, Host List, Access Control

External Power Supply

12V/1A

WAN Failover

Yes

VoIP Standards

SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.729AB, G.726

Integrated Answering Machine

Stores 100 minutes long voice messages internally on the modem router

Advanced Telephone Functions

Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number
