TP-Link

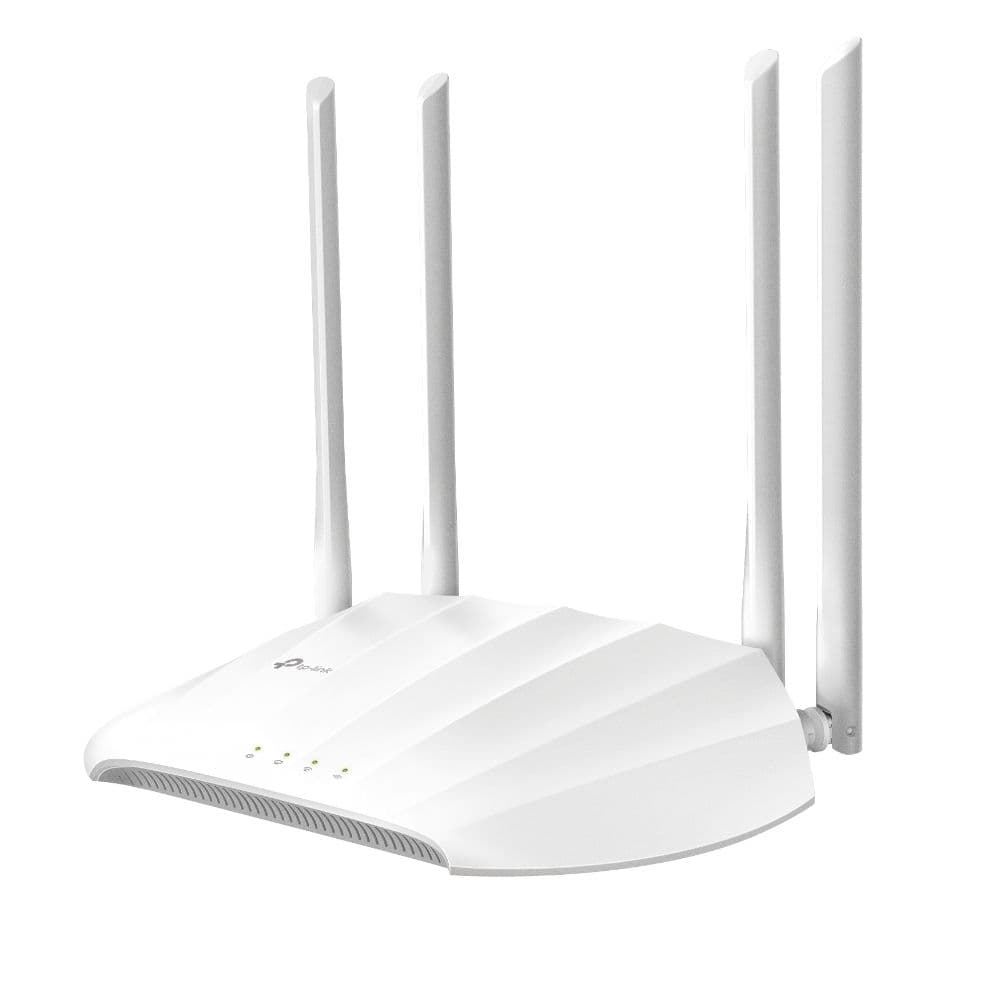

TL WA1201 - AC1200 Wireless Access Point

0,00 ₼

AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
Captive Portal – Offers a designed portal page for heightened security and marketing.

Low stock

Advanced Features

Captive Portal

Quality of Service

WMM

DHCP

Server, DHCP Client List

Package Content

Wireless Access Point TL-WA1201Power AdapterRJ45 Ethernet CableQuick Installation GuidePoE Power Injector

Environment

Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browser

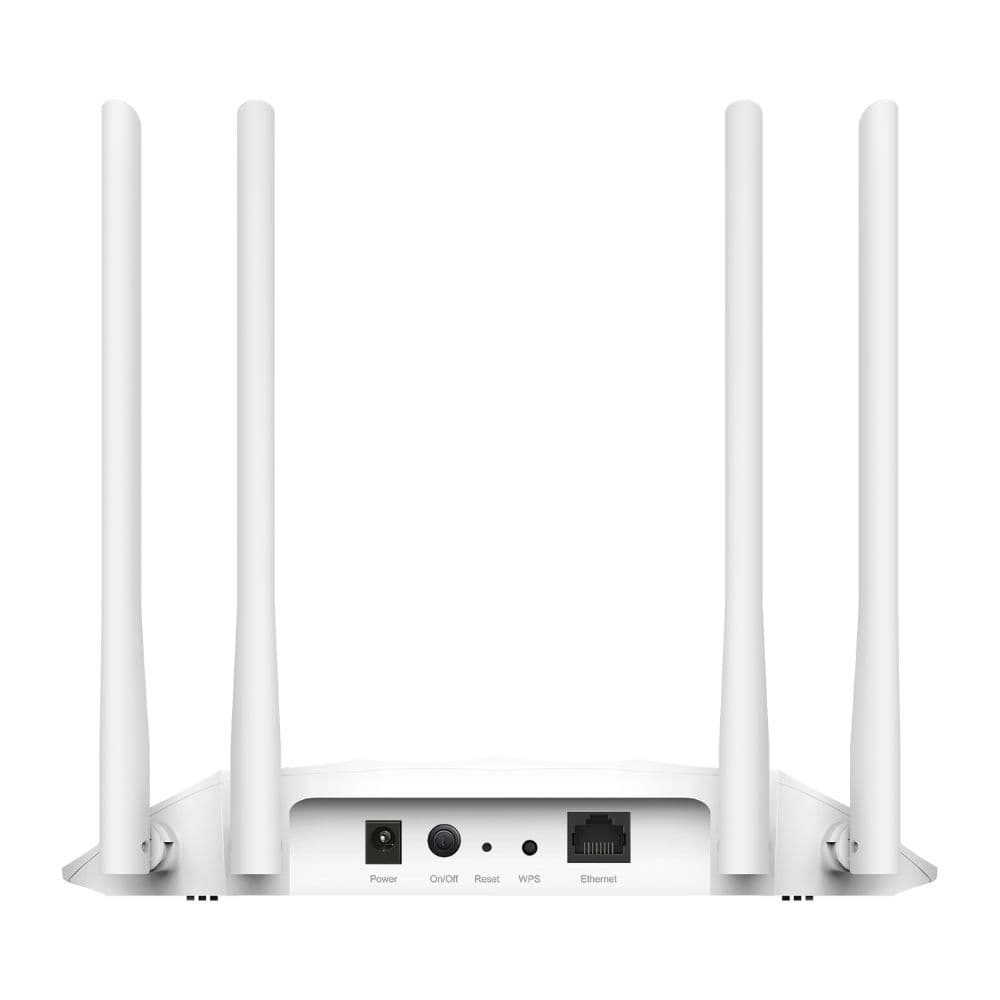

Interface

1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)

Button

Power On/Off Button, WPS Button, Reset Button

Dimensions ( W x D x H )

8.9 × 5.7 × 1.5 in (225×145.5×37 mm)

Antenna

4 Fixed High Performance Antennas

Certification

CE, FCC, RoHS

Wireless Standards

IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz

Reception Sensitivity

5 GHz:11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm2.4 GHz:11g 54Mbps: -78 dBm11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

External Power Supply

12V/1.5A

Transmission Power

CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)FCC: <30dBm(2.4GHz&5GHz)

Wireless Modes

Access Point, Range Extender, Client, Multi-SSID

Protocol Support

IPv4, IPv6
