TP-Link

TL-WA1801 - AX1800 Gigabit Wi-Fi 6 Access Point

0,00 ₼

Gigabit WiFi 6 Speed – 1.8 Gbps Dual Band WiFi for faster browsing, streaming and downloading, all at the same time.†
Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.

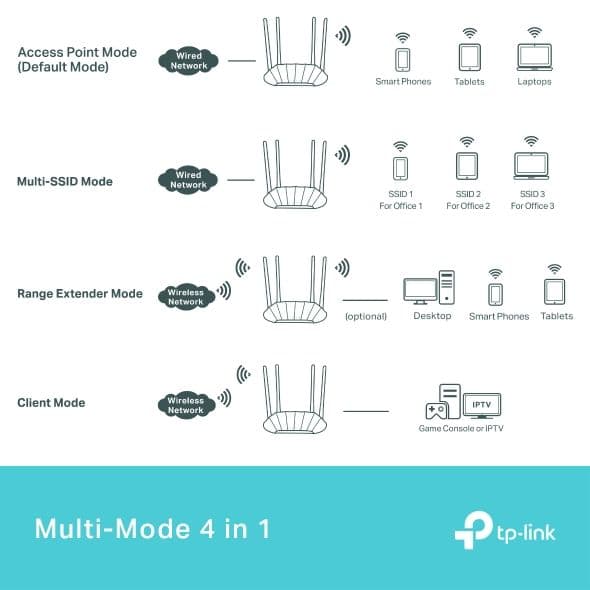

Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
Captive Portal – Offers a designed portal page for heightened security and marketing.

Low stock

Protocols

IPv4, IPv6

Quality of Service

WMM

DHCP

Server, DHCP Client List

Package Content

Wireless Access Point TL-WA1801Power AdapterRJ45 Ethernet CableQuick Installation GuidePoE Power Injector

Environment

Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)Operating Humidity: 10%~90% non-condensing

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, orother JavaScript-enabled browser

Interface

1 Gigabit Port (Supports Passive PoE)

Button

Power On/Off Button, WPS Button, Reset Button

Dimensions ( W x D x H )

8.9×5.7×1.5 in (225×145.5×37mm)

Antenna

4 Antennas

Operating Modes

Access Point, Range Extender, Client, Multi-SSID

Certification

FCC, RoHS

Wireless Standards

IEEE802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

1201 Mbps at 5 GHz574 Mbps at 2.4 GHz

Reception Sensitivity

5GHz:11a 6Mbps: -97dbm11a 54Mbps:-76dbm11ac VHT20_MCS0: -96dbm11ac VHT20_MCS8: -72dbm11ac VHT40_MCS0: -93dbm11ac VHT40_MCS9: -67dbm11ac VHT80_MCS0: -90dbm11ac VHT40_MCS9:-63dbm11ax HE20_MCS0:-96dbm11ax HE20_MCS11: -65dbm11ax HE40_MCS0: -93dbm11ax HE40_MCS11: -61dbm11ax HE80_MCS0: -90dbm11ax HE80_MCS11:-60dbm2.4GHz:11g 6Mbps:-96dbm11a 54Mbps:-75dbm11ac VHT20_MCS0:-95dbm11ac VHT20_MCS8:-72dbm11ac VHT40_MCS0:-92dbm11ac VHT40_MCS9: -67dbm11ax HE20_MCS0:-95dbm11ax HE20_MCS11: -65dbm11ax HE40_MCS0: -92dbm11ax HE40_MCS11: -62dbm

Wireless Functions

Enable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control

Wireless Security

WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions

External Power Supply

48V/0.375A

Transmission Power

FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

System Tools

SNMP, Ping Watchdog
