TP-Link

TL WA860RE - 300Mbps Wi-Fi Range Extender with AC Passthrough

0,00 ₼

Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

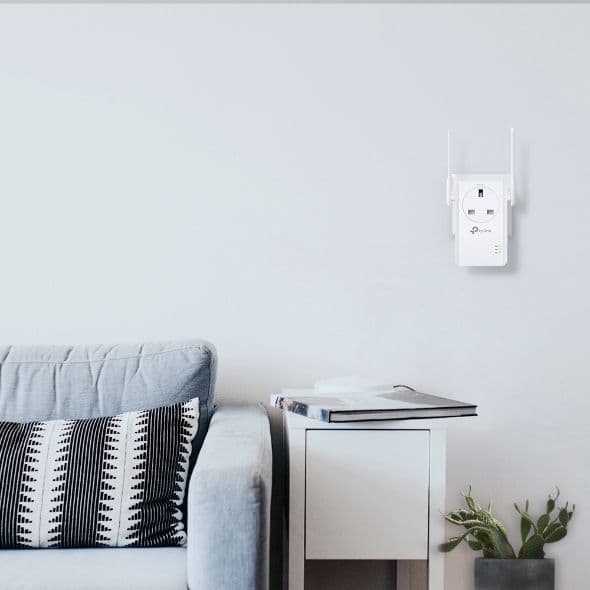

Miniature size and wall-mounted design make it easy to deploy and move flexibly

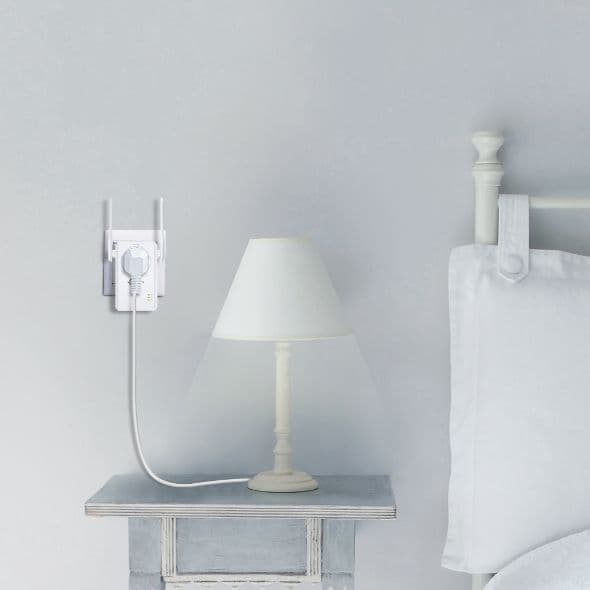

Extra power socket making sure that no power outlet is going to waste
2 fixed external antennas provide excellent Wi-Fi coverage and reliability
Easily expand wireless coverage at a push of Range Extender button

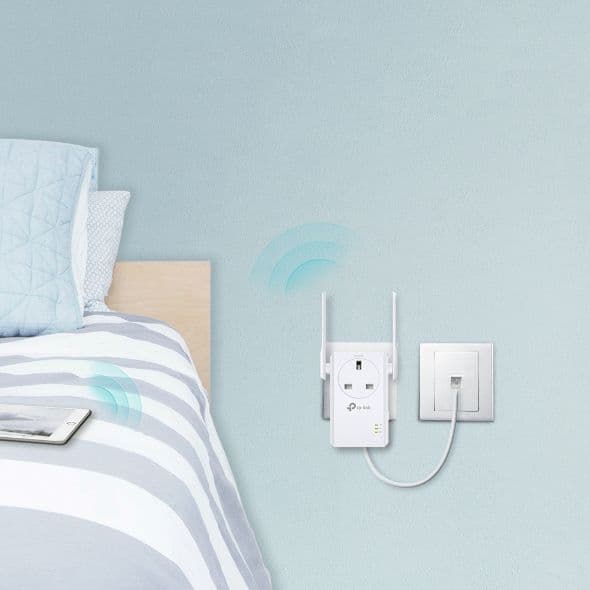

Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

Low stock

Standards and Protocols

IEEE 802.11b/g/n

Working Modes

Range Extender/Access Point

Package Content

- 300 Mbps Wi-Fi Range Extender with AC Passthrough- Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ orWindows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari4.0, or other Java-enabled browser

Interface

1 x 10/100Mbps Ethernet Port (RJ45)

Button

RE (Range Extender) Button, Reset Button

Dimensions ( W x D x H )

3.74×2.28×1.65 in (95×58×42 mm) (L × W × H)

Antenna

2 x external

Certification

CE, RoHS

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.4 GHz

Signal Rate

11n: Up to 300Mbps (dynamic)11g: Up to 54Mbps (dynamic)11b: Up to 11Mbps (dynamic)

Reception Sensitivity

2.4 GHz:11g 54Mbps: -80dBm, 11n HT20: -79dBm11n HT40: -75dBm

Wireless Functions

WMM (Wi-Fi Multimedia)Wireless MAC Address FilteringWireless StatisticDomain Login Function

Wireless Security

64/128/152-bit WEPWPA-PSK / WPA2-PSK encryptions

Input Power

100-240V~50/60Hz

Transmission Power

CE: <15dBm

Max. Power Consumption

3.2W

Wireless Modes
