TP-Link

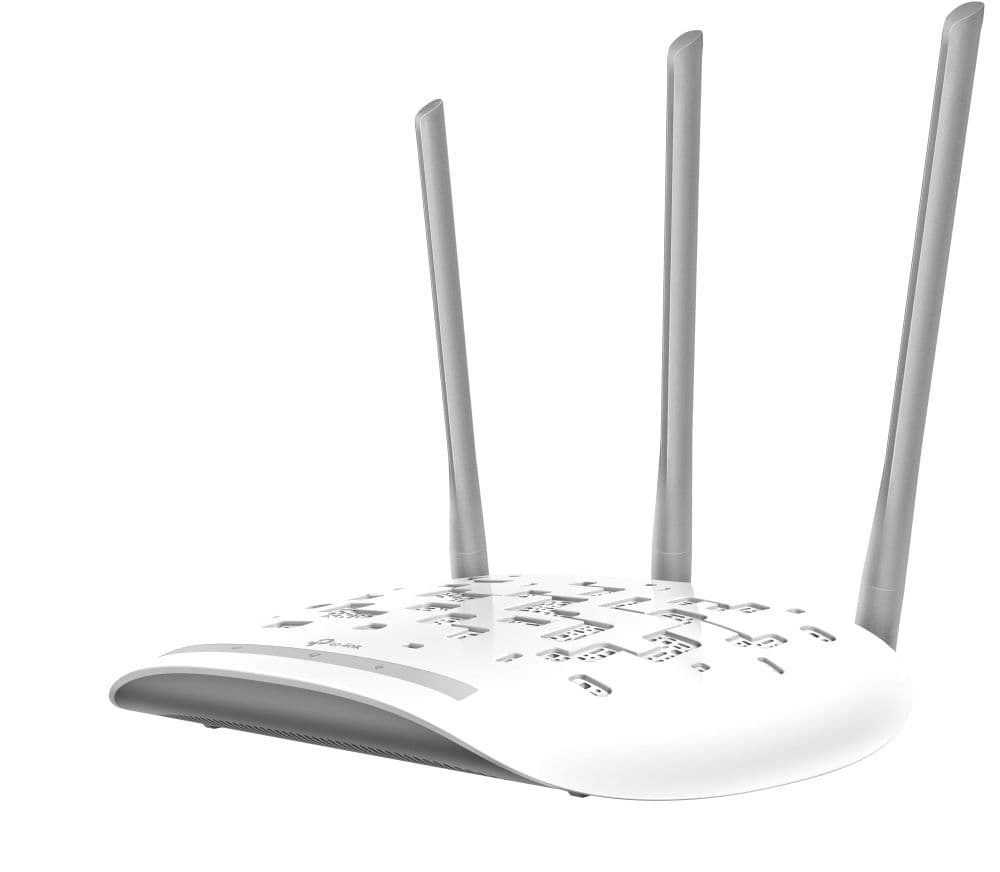

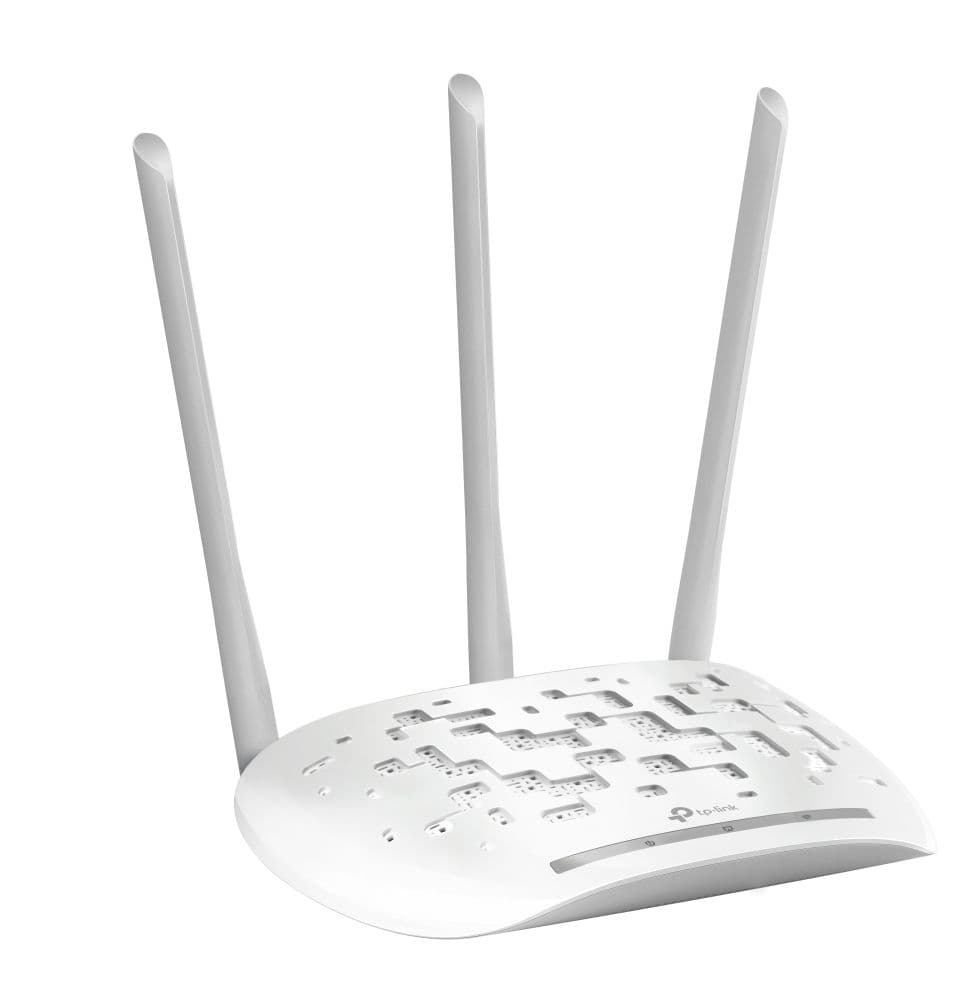

TL WA901N - 450Mbps Wireless N Access Point

0,00 ₼

450Mbps wireless transmission rate brings smooth wireless N experience
Supports multiple operating modes: Access Point, Range Extender, Multi-SSID and Client modes
Easily setup a WPA-PSK/WPA2-PSK encrypted secure connection at a push of the WPS button
Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector

Low stock

Advanced Features

Up to 30 meters PoE is supported

Quality of Service

WMM

DHCP

Server, DHCP Client List

Management Features

SNMP

Package Content

Wireless N Access Point TL-WA901NPower AdapterPassive PoE Power InjectorRJ45 Ethernet CableQuick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browserCable or DSL ModemSubscription with an Internet Service Provider (for Internet access)

Interface

1× 10/100M Ethernet Port(RJ45)Support Passive PoE

Button

Power On/Oﬀ Button, Reset Button, WPS Button

Dimensions ( W x D x H )

7.7 × 5.3 × 1.4 in (195 × 134 × 36 mm )

Antenna

3 Fixed Omni-Directional Antennas

Certification

CE, FCC, RoHS

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.4 GHz

Signal Rate

450 Mbps at 2.4 GHz

Reception Sensitivity

11g 54M: -76dBm11n 20Mbps: -73dBm11n 40Mbps: -70dBm

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM,Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2encryptions

External Power Supply

9VDC / 0.85A

Transmission Power

CE: <20dBm; FCC: <30dBm

Wireless Modes

Access Point, Range Extender, Client, Multi-SSID

Protocol Support

IPv4, IPv6
