TP-Link

TL WPA7517 KIT - AV1000 Gigabit Powerline ac Wi-Fi Kit

0,00 ₼

Homeplug AV2 standard compliant - Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters
Dual band 802.11ac Wi-Fi - AC750 dual band Wi-Fi (433Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home

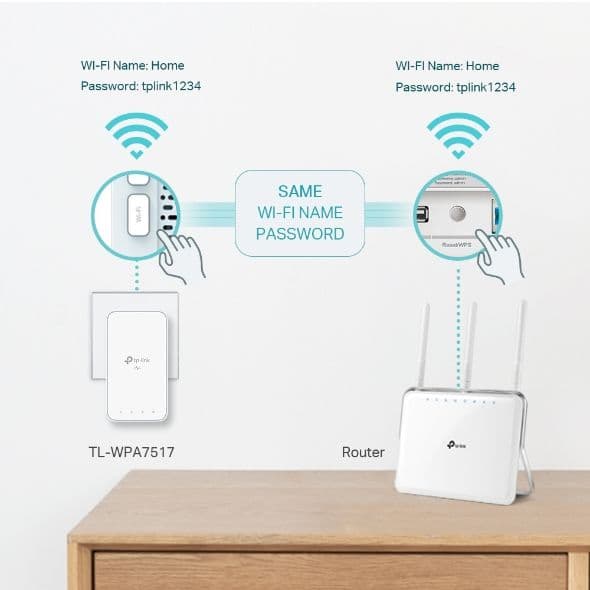

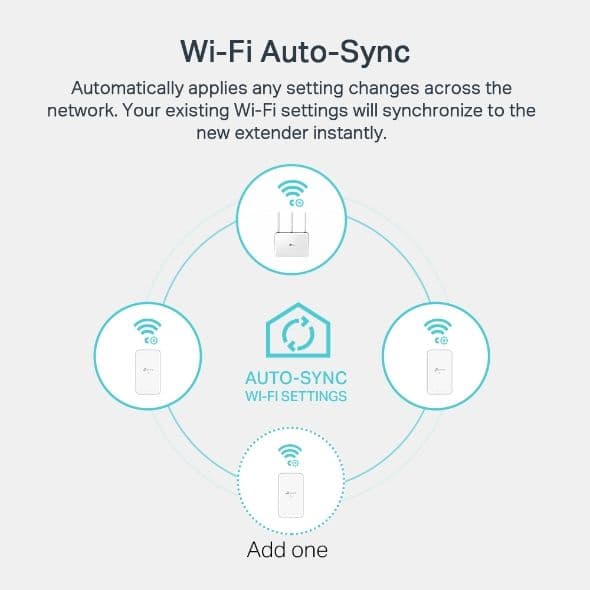

Wi-Fi Auto-Sync - Simply copy your router‘s Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move

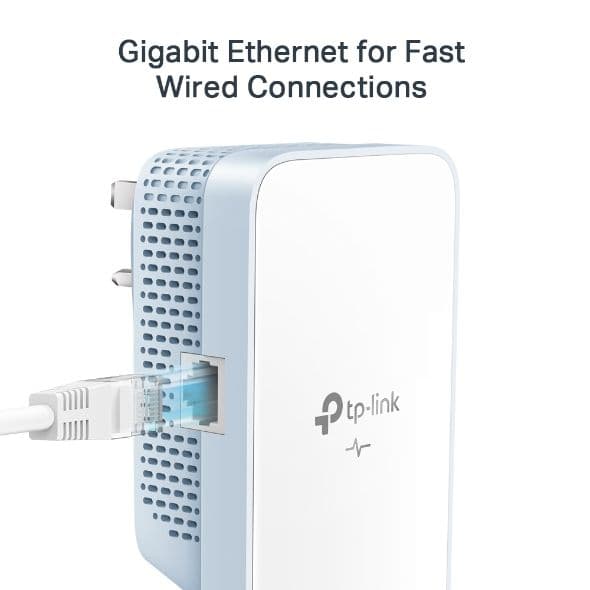

Gigabit Ethernet Ports - Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS
Plug, Pair and Play - Quickly set up a secured Powerline network

Low stock

Standards and Protocols

HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u,IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)

Management Features

tpPLC: Scan the QR code to download TP-Link tpPLC App.Or download new tpPLC Utility on PCs: www.tp-link.com.

Network Services Enabled by Default

Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCPDHCP ServerIP address assignment (DHCP)• Port: 67 Protocol: UDPOnemesh managementOnemesh Configuration (Synchronization & Communication)• Port: 20001 Protocol: TCP• Port: 20002 Protocol: UDPApp managementManage and configure device through app• Port: 1040 Protocol: UDP

Dimensions (W×D×H)

• TL-WPA7517: 2.7 × 1.4 × 4.9 in (69.5 × 35 × 124.1 mm)• TL-PA7017: 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm)

Package Content

AV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017Ethernet Cable × 2Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)Operating Humidity: 10%~90% non-condensing

System Requirements

Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux

Interface

TL-WPA7517: 1 Gigabit Ethernet PortTL-PA7017: 1 Gigabit Ethernet Port

Button

Pair, Reset, Wi-Fi Clone, LED On/Off

Dimensions ( W x D x H )

TL-WPA7517: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm)TL-PA7017: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)

Certification

CE, RoHS

Wireless Standards

• TL-WPA7517: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz• TL-PA7017: N/A

Frequency

• TL-WPA7517: 2.4 GHz and 5 GHz• TL-PA7017: N/A

Signal Rate

• TL-WPA7517: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz• TL-PA7017: N/A

Wireless Security

WPA-PSK / WPA2-PSK, WEP Encrptions

Security

• Powerline: 128-bit AES Encryption• Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions

OneMesh™

OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products>

Max. Power Consumption

TL-WPA7517: Maximum: 11W, Typical: 6.5WTL-PA7017: Maximum: 2.9W, Typical: 2.6W

Mesh Technology

EasyMesh-CompatibleWithout replacing your existing devices or buying a whole new WiFi ecosystem, EasyMesh helps you create a more flexible network that covers your entire home with EasyMesh-compatible products.Learn More>All EasyMesh Products>

Plug Type

Transmission Speeds

Powerline: Up to 1000 MbpsEthernet: 10/100/1000 Mbps

Transmission Distance

Up to 300 meters/1000 feet over existing electrical wiring

Compatibility

Compatible with all HomePlug AV & AV2 standard powerline adapters

LED

Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)

Range
