TL WR820N - 300 Mbps Multi-Mode Wi-Fi Router

Standards and Protocols

Wi-Fi 4IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

N3002.4 GHz: 300 Mbps (802.11n)

WiFi Range

2 Bedroom Houses2× Fixed Antennas

WiFi Capacity

Legacy

Working Modes

Router ModeAccess Point ModeRange Extender ModeWISP Mode

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway

Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption

WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)

Ethernet Ports

1× 10/100 Mbps WAN Port2× 10/100 Mbps LAN Ports

Buttons

Reset Button

Protocols

IPv4IPv6

Parental Controls

URL FilteringTime Controls

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

QoS by Device

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

NO-IPDynDNS

Management Features

Tether AppWebpageCheck Web Emulator>

Dimensions (W×D×H)

4.5 × 4.2 × 1.0 in(115 × 106.7 × 24.3 mm)

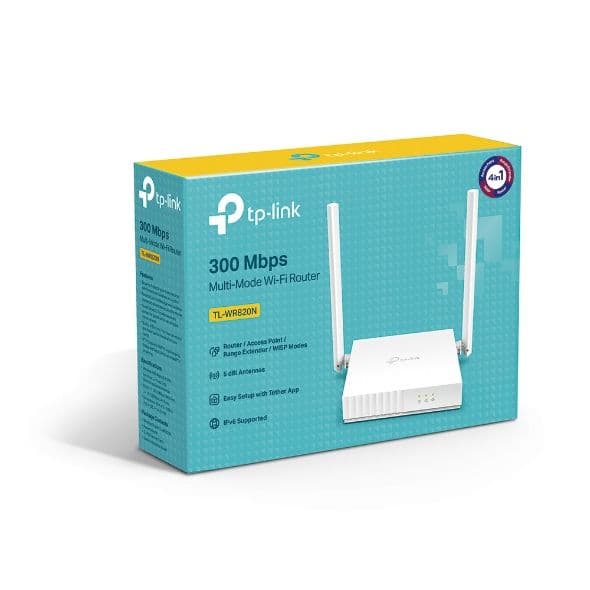

Package Content

Wi-Fi Router TL-WR820NPower AdapterRJ45 Ethernet CableQuick Installation Guide

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Power

5 V ⎓ 0.6 A

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)

WiFi Transmission Power

CE:<20dBm(2.4GHz)FCC:<30dBm

WiFi Reception Sensitivity

270M: -70dBm@10% PER130M: -74dBm@10% PER108M: -74dBm@10% PER54M: -77dBm@10% PER11M: -87dBm@8% PER6M: -90dBm@10% PER1M: -98dBm@8% PER

Processor

Single-Core CPU
