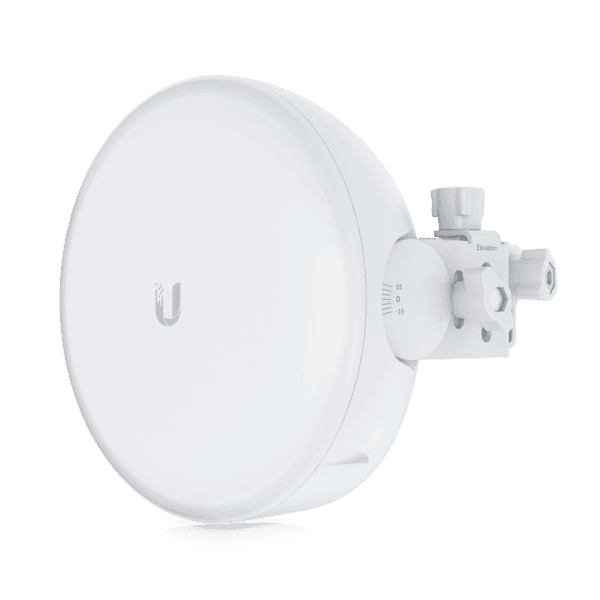

airMAX AC 60 GHz Radio System with True Duplex Gigabit Performance. GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in a outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easily set-up, configured and managed through the UISP dashboard and UISP™️ Mobile app via Bluetooth. Features: - Low-Interference 60 GHz Spectrum - 35 dBi Antenna Gain with Integrated Reflector - 1.5+ Gbps Bidirectional Throughput with Low Latency - Long Range, up to 1.5 km - link.ui.com Planning Support - Quick Setup Using the UISP™️ App via Bluetooth Compared to the previous 60GHz model, the GigaBeam, the range has increased and the throughput has increased by 1.5 times. Ubiquiti engineers abandoned the use of a 5GHz radio module, focusing on the main purpose of the airMAX GigaBeam Plus - the device of high-speed point-to-point radio channels. This solution resulted in an attractive price / performance ratio. The airMAX GigaBeam Plus 60 GHz is housed in a rugged industrial-grade outdoor enclosure. The new design of the antenna reflector, with a deeper profile, results in a significant improvement in signal strength. Easy setup and configuration of GigaBeam Plus, thanks to the UISP control panel and UISP ™ mobile app ️ via Bluetooth, does not require any special additional skills. Datasheet Installation Guide
| Antenna gain | 35 dBi |
| ESD/EMP Protection | Air/Contact: ± 24kV |
| Management | : Ethernet In-Band Bluetooth |
| Memory | : 256 MB DDR3 |
| Mounting | : Metal |
| Processor | Quad-Core ARM® Cortex® A7 |
| RF Connectors | : Internal |
| Supported Input Voltage Range | 22 to 26VDC |
| Wind Loading | 50 N at 200 km/h (11.24 lbf at 125 mph) |
| Dimensions | : Ø155 x 137 mm (Ø6.1 x 5.4") |
| Weight | : 1kg (2.2 lb) |
| Operating Temperature | : -40 to 60° C (-40 to 140° F) |
| Operating Humidity | : 5 - 95% Noncondensing |
| Operating System | : airOS® |
| Operating Frequency | : 57,000 - 66,000 MHz * Depends on regulatory region. |
| Networking Interface | : 10/100/1000 Mbps Ethernet RJ45 |
| Enclosure Characteristics | : UV Resistance Polycarbonate, Stainless Steel |
| Channel Bandwidth | : 2160 MHz |
| Security | WPA2 AES Only |
| Power Supply | : 24VDC, 0.5A Gigabit PoE Adapter 24V, 1A for using Motor Accessory |
| Power Method | : Passive PoE (Pairs 4, 5+; 7, 8-) |
| Max power consumption | : 11W |
| Certifications | FCC, IC, CE |
