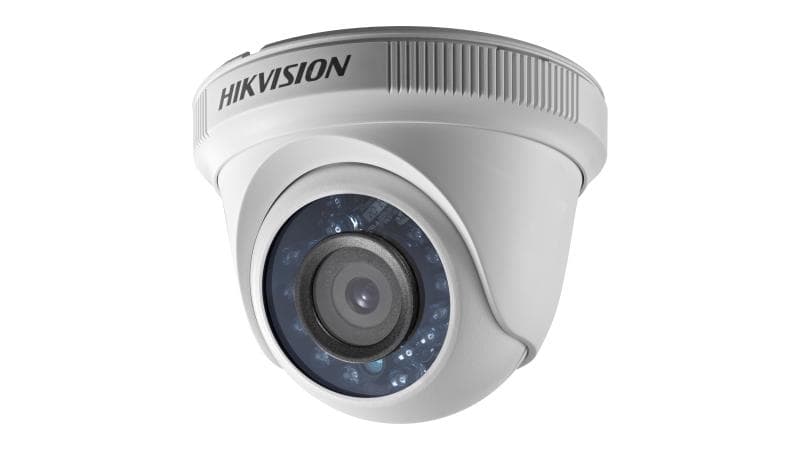

DS-2CE56D0T-IR

General

Material	Enclosure: Plastic,Main body: Metal
Dimension	Φ 89.5 mm × 69.8 mm (Φ 3.52" × 2.75")
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)
Language	English, Chinese
Power Supply	12 VDC±15%
Consumption	Max. 4 W
IR Range	Up to 20 m

Kamera

Image Sensor	2MP CMOS Image Sensor
Max. Resolution	1920 (H) × 1080 (V)
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	1/25 (1/30) s to 1/50,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System	PAL/NTSC

Lens

Lens Type	2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV	103 ° (2.8 mm), 82.2 ° (3.6 mm), 54 ° (6 mm)
Lens Mount	M12


Image Settings	Brightness, Sharpness, DNR, Mirror
Frame Rate	PAL: 1080p@25fps,NTSC: 1080p@30fps
Day/Night Mode	Smart/color/BW(Black and White)
Wide Dynamic Range (WDR)	DWDR
Image Enhancement	BLC
AGC	Low/middle/high

Interface

Video Output

TVI only

Approval

Protection

IP66
