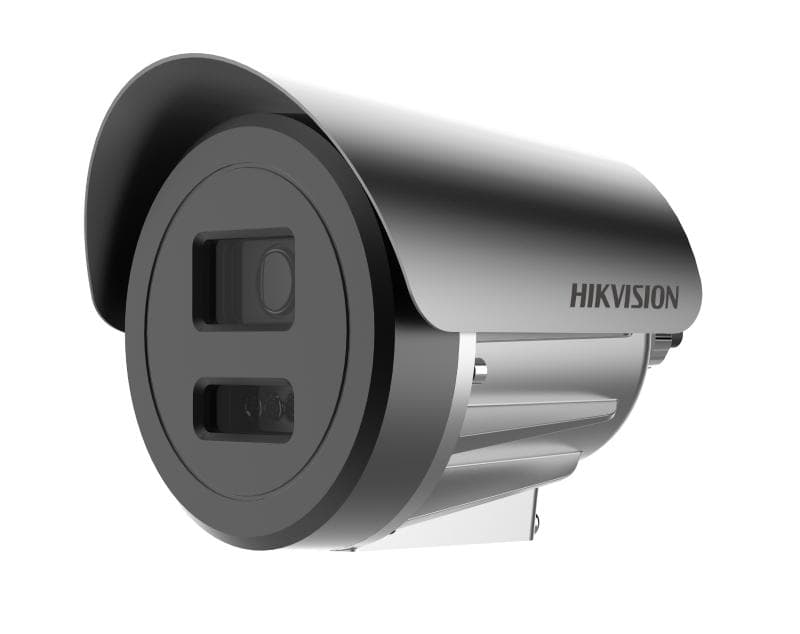

DS-2XE6046G0-LIS(ADC)

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

LOA: IEC/EN 60950-1

ATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68

IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68

For explosive gas atmospheres, the maximum surface temperature is 85 °C;

For flammable dust atmospheres, the maximum surface temperature is 80 °C;

IIC: for explosive gas atmospheres other than mines susceptible to firedamp;

For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.

100 VAC to 240 VAC, 0.2 A, max. 7 W,

three-core terminal block,

PoE: IEEE 802.3af, Class 3, max. 7 W

IR: up to 50 m

White Light: up to 30 m

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,

*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

2.8 mm, horizontal FOV 103.6°, vertical FOV 57.2°, diagonal FOV 121.6°

4 mm, horizontal FOV 83.5°, vertical FOV 44.8°, diagonal FOV 99.9°

6 mm, horizontal FOV 51.8°, vertical FOV 27.9°, diagonal FOV 60.5°

Up to 32 users

3 user levels: administrator, operator, and user

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
