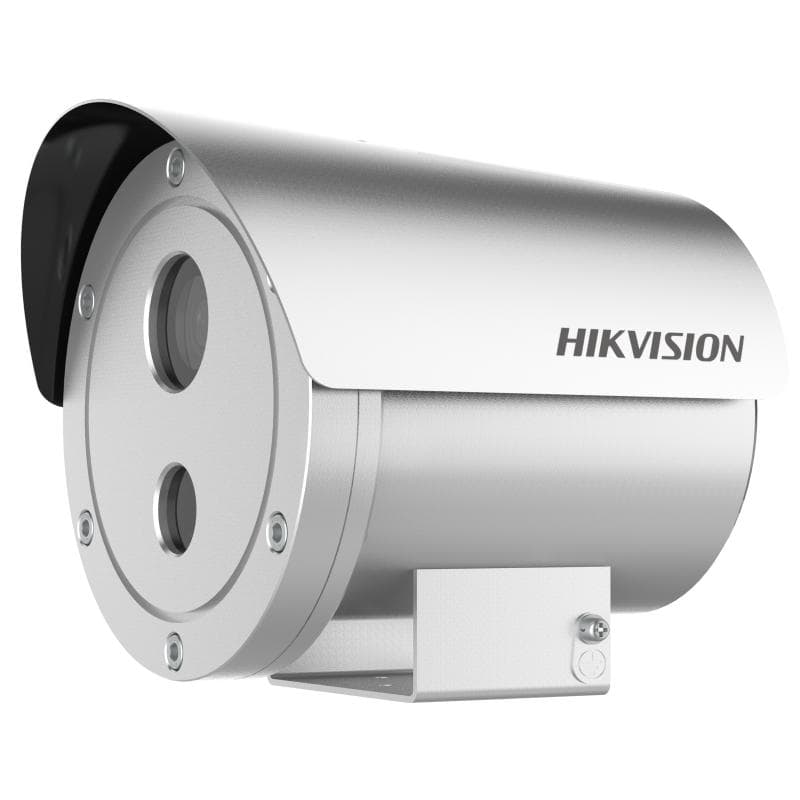

DS-2XE6222F-IS/316L(D)

FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)

CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3:2013)

IC: IC-VoC (ICES-003 Issue 7: 2020)

KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)

CB (IEC 60950-1)

CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013)

ATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68

IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68

For explosive gas atmospheres, the maximum surface temperature is 85°C;

For flammable dust atmospheres, the maximum surface temperature is 80°C;

IIC: for explosive gas atmospheres other than mines susceptible to firedamp;

For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.

4 mm:

D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m

6 mm:

D: 88.3 m, O: 35 m, R: 17.7 m, I: 8.8 m

8 mm:

D: 110.3 m, O: 43.8 m, R: 22.1 m, I: 11 m

12 mm:

D: 171 m, O: 67.9 m, R: 34.2 m, I: 17.1 m

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))

Scene change detection, audio exception detection

100 VAC to 240 VAC, 0.15 A, 50/60 Hz, max. 7 W, terminal block

PoE: 802.3af, Class 3, 36 to 57 V, 0.3 to 0.2 A

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

4 mm, horizontal FOV 83°, vertical FOV 43°, diagonal FOV 97°

6 mm, horizontal FOV: 50°, vertical FOV 27°, diagonal FOV 59°

8 mm, horizontal FOV 39°, vertical FOV 21°, diagonal FOV 45°

12 mm, horizontal FOV 24°, vertical FOV 14°, diagonal FOV 28°

Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11

Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Not recommended: Safari 11+, Edge

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)

Main stream: H.265/H.264/H.265+/H.264+

Sub stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG
