POE170S - Omada PoE++ Injector

HARDWARE FEATURES - Interface

• 1× 10/100/1000Mbps RJ45 data-in port• 1× 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W)• 1× AC socket

HARDWARE FEATURES - Max. Power Consumption

• Input: 100-240 V, 50/60 Hz, 1.6A• Output: Auto-determine the necessary power requirements (max. 60 W)

HARDWARE FEATURES - Dimensions ( W x D x H )

6.1×2.8×1.7 in (155×70×42 mm)

OTHERS - Certification

FCC, CE, RoHS

OTHERS - Package Content

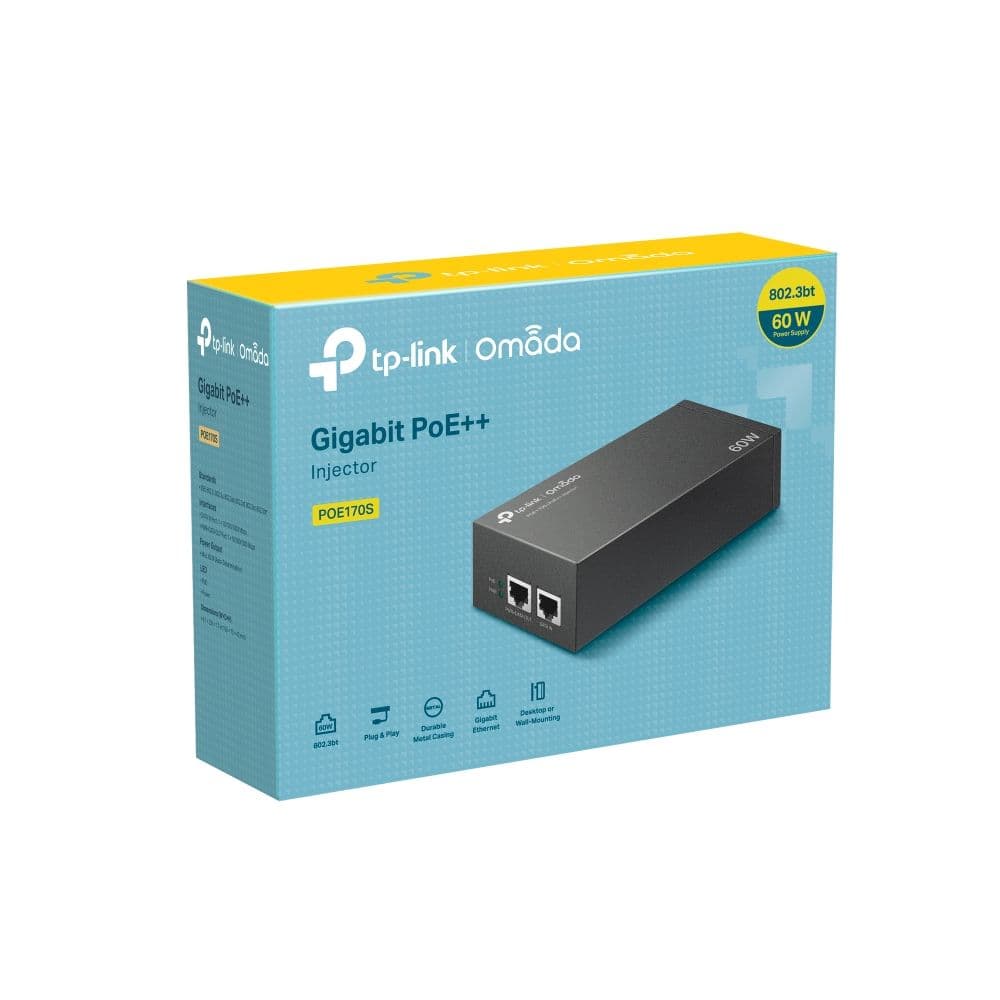

• Omada PoE++ Injector POE170S• Installation Guide• Power Cord• RJ45 Cable

OTHERS - Environment

• Operating Temperature: 0°C to 45°C (32°F to 113°F)• Storage Temperature: -40°C to 70°C (-40°F to 158°F)• Operating Humidity: 10% to 90%RH non-condensing• Storage Humidity: 5% to 90%RH non-condensing

HARDWARE FEATURES - Standards and Protocols

IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*

HARDWARE FEATURES - Network Media

• 10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m)• EIA/TIA-568 100Ω STP (maximum 100 m)• 100BASE-TX: UTP category 5, 5e cables (maximum 100 m)• EIA/TIA-568 100Ω STP (maximum 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m)

HARDWARE FEATURES - LED

• Power • PoE

HARDWARE FEATURES - Basic Function

• Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD• Auto-determine the necessary power requirements• Wall-mounting and desktop installation supported• Plug-and-Play

GENERAL - Material

Metal Casing
