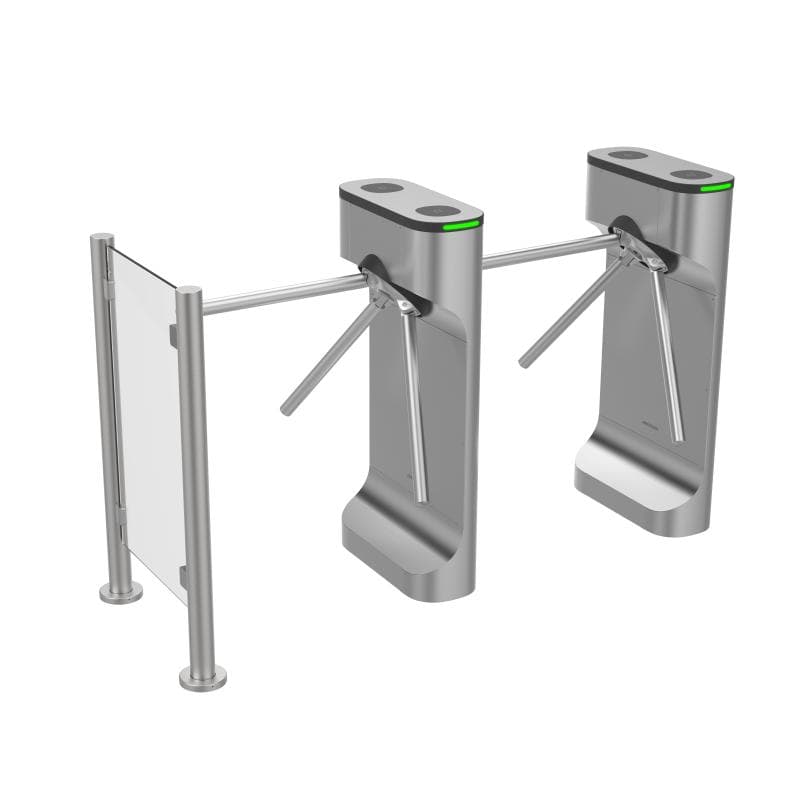

DS-K3G411CX

Name: REPAIRAZ MMC
Address: Qurban Abbasov 29, Bakı, AZ
Telephone: +994773394100

0,00 ₼

Valid passing duration settings: system will cancel the passing permission if a person does not pass through the lane within the valid passing duration.
Fire alarm passing: when the fire alarm is triggered, the barrier will be dropped automatically for emergency evacuation.
Bidirectional (entering/exiting) lane.
Easy to configuration though PC web & Mobile web.
Support remote control keyfob 433MHz or 868MHz optional.
Support speaker function by self-define voice file MP3 format.

Az qalıb

Card

EM card or M1 card (actual corresponding card type refer to product model names).

Card capacity	500,000
Event capacity	500,000

Configuration via PC Web	Support
Configuration via mobile Web	Support
Audio prompt	Support
Communication protocol	ISAPI
Keypad configuration	Support
Keyfob	Support, 433 MHz/868 MHz, within 50 m

Throughput	30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
Lane width	550 mm (21.65")
Barrier material	1.2 mm stainless pipe
Pedestal material	SUS304 stainless steel 1.2 mm
Power consumption	Standby: 20 W Working: 35 W Peak: 45 W
Working temperature	-20 °C to 65 °C (-4 °F to 149 °F)
Working humidity	0% to 95% (No condensing)
Protective level	/
Dimensions	Without package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0\" × 40.0\") With package: 700 mm × 430 mm × 1140 mm (27.56 × 16.93\" × 44.88\")"
Approval	CE/CB/RoHS/REACH/WEEE
Power supply method	Power supply: 100 to 240 VAC~, 50/60 Hz, 1A-0.5A
Language	Arabic, Indonesian, Japanese, Kazakh, Portuguese (Brazil), Spanish (Mexico), Spanish (Spain), Thai, Russian, English
