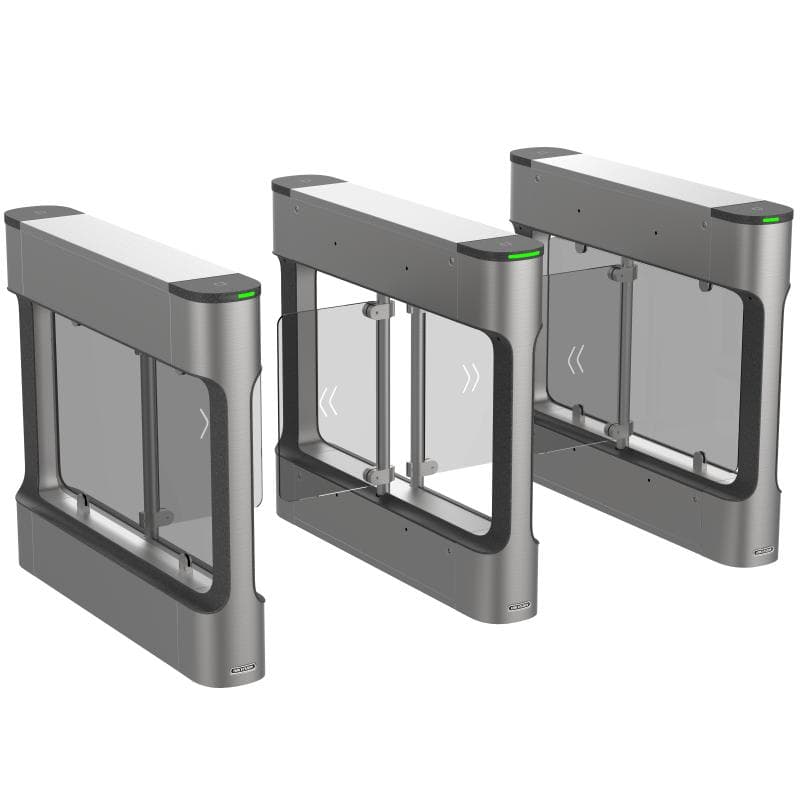

Hikvision

DS-K3B411BX

Name: REPAIRAZ MMC
Address: Qurban Abbasov 29, Bakı, AZ
Telephone: +994773394100

0,00 ₼

6 pairs of IR light detectors: Permissions validation and anti-tailgating
LED light indicates passing direction
The barrier will stop working for a period of time when detecting obstruction when open/close barrier
Self-detection, Self-diagnostics, and automatic alarm
System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered.
Barrier will automatically open when powering down

Az qalıb

Card capacity

500,000

Lane width	650;750;900;1100
Pedestal length	1200 mm
Module selection	YES
Pedestal width	200 mm
Wall distance	60 mm
Base	YES
Barrier material	Acrylic glass;Stainless steel pipe
Application environment	Indoor and outdoor
Authentication mode	Card;Face;QR code
Card type	EM;M1
Recommended width	650 mm
Base model	DS-KSM01/B411
Product type	Swing barrier
Remote controller type	433Mhz;868Mhz
Convert Face	NO
Door Height	Default(0.77m)
Door wing gap	Default:50mm

Throughput	20 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
Lane width	550 mm to 1100 mm
Barrier material	Stainless steel pipe; Acrylic
Pedestal material	SUS304 stainless steel
Power consumption	65W (stand by)
Working temperature	-20 °C to 65 °C °C (-4 °F °F to 149 °F °F)
Working humidity	10% to 95% (No condensing)
Dimensions	Without package: 1200 mm × 200 mm × 1020 mm (47.2" × 7.9\" × 40.2\") With package: 1408 mm × 348 mm × 1156 mm (55.4 × 13.7\" × 45.5\")"
